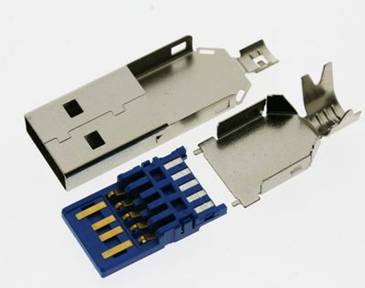

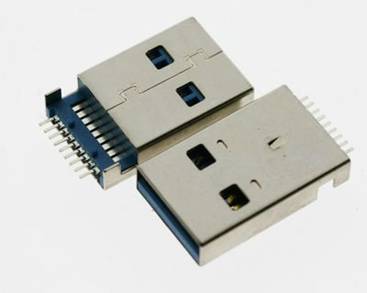

USB 3.0 AM SOLDER

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.25mm

1 3-SHELL: Steel ,t=0.35mm

　

FINISHES:

CONTACTS: 30 u” GOLD FLASHED

SHELL: NICKEL    PLATED.

　

Acrobat Download



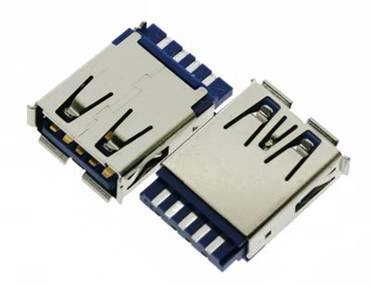

USB 3.0 AM SMT

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.20mm

1.3- SHELL: Steel ,t=0.35mm

　

FINISHES:

CONTACTS: 30u”GOLD FLASHED.

SHELL: NICKEL    PLATED.

　

Acrobat Download

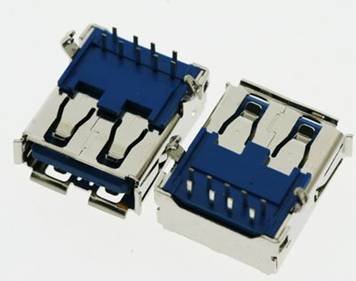

 USB 3.0 AF SOLDER

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.20mm

1.3-Shell: Copper alloy,t=0.40mm

　

FINISHES:

CONTACTS: 30u" GOLD FLASHED.

SHELL: NICKEL, TIN   PLATED.

　

Acrobat Download



　

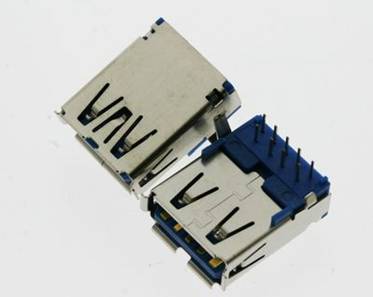

USB 3.0 AF  RIGHT ANGLE

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.25mm

1.3-Shell: Copper alloy,t=0.40mm

　

FINISHES:

CONTACTS: 30u" GOLD FLASHED.

SHELL: NICKEL   PLATED.

　

Acrobat Download





USB 3.0 AF  RIGHT ANGLE(REVERSE)

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.25mm

1.3-Shell: Copper alloy,t=0.40mm

　

FINISHES:

CONTACTS: 30u" GOLD FLASHED.

SHELL: NICKEL, TIN  PLATED.

　

Acrobat Download





　

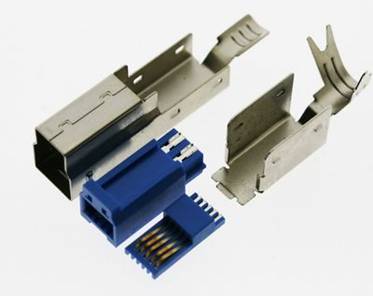

USB 3.0 BM SOLDER

MATERIALS:



1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0



1.2-Contact:Phosphor bronze,t=0.40mm



1.3-Shell:Spcc,t=0.30mm

　

FINISHES:



CONTACTS: 30u" GOLD FLASHED.



SHELL: NICKEL, TIN   PLATED.

　

Acrobat Download





　

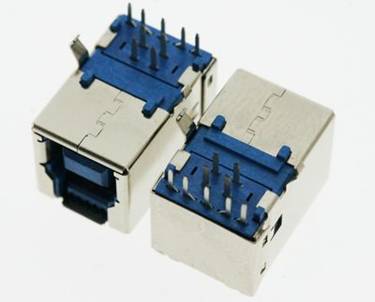

USB 3.0 BF  RIGHT ANGLE

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.20mm

1.3-Shell: Copper alloy,t=0.30mm

　

FINISHES:

CONTACTS: 30u" GOLD FLASHED.

SHELL: NICKEL, TIN  PLATED.

　

Acrobat Download





　

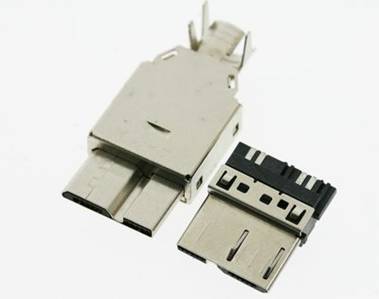

USB 3.0 MICRO BM SOLDER

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.20mm

1.3-Shell: Copper alloy,t=0.30mm

　

FINISHES:

CONTACTS: 30u" GOLD FLASHED.

SHELL: NICKEL, TIN  PLATED.

　

Acrobat Download

　

　

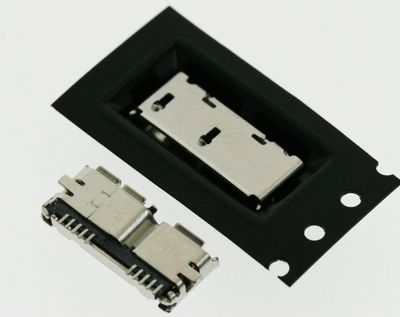

USB 3.0 MICRO BF SMT

MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.20mm

1.3-Shell:Spcc,t=0.30mm

　

FINISHES:

CONTACTS: 15u" GOLD FLASHED.

SHELL: NICKEL, TIN  PLATED.

　

Acrobat Download

　

　



MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.20mm

1.3-Shell:Spcc,t=0.30mm

　

FINISHES:

CONTACTS: 15u" GOLD FLASHED.

SHELL: NICKEL, TIN  PLATED.

　

Acrobat Download

　

　



MATERIALS:

1.1-Insulator:High temperature

　

　

　

thermoplastic with g.fUL94v-0

1.2-Contact:Copper alloy,t=0.20mm

1.3-Shell:Spcc,t=0.30mm

　

FINISHES:

CONTACTS: 15u" GOLD FLASHED.

SHELL: NICKEL, TIN  PLATED.

　

Acrobat Download

　
