HSI-CHIN ELECTRONICS .,CO LTD.

MATERIAL & FINISHES

	INSULATOR: PBT UL 94-V0 RATED
	CONTACT: COPPER ALLOY
	SHELL: STEEL, COPPER ALLOY
	CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED
	SHELL PLATING: TIN OR NICKEL OVER COPPER PLATED

ELECTRICAL CHARACTERISTICS

	RATING CURRENT: 1 AMP
	CONTACT RESISTANCE: 25 MILLIOHM MAX.
	INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V
	DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE
	OPERATING TEMPERATURE: -55 TO +105
	MATING CYCLES: 3000 CYCLES MIN.

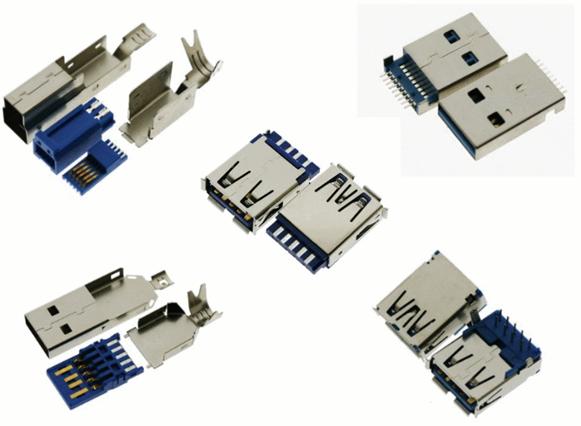

U.S.B. 3.0 CONNECTOR SERIES
1	USB-3.0 A MALE SOLDER LONG SHELL
2	USB-3.0 A MALE SOLDER SHORT SHELL
3	USB-3.0 A MALE SMT
4	USB-3.0 A FEMALE SOLDER
5	USB-3.0 A FEMALE RIGHT ANGLE
6	USB-3.0 A FEMALE RIGHT ANGLE(REVERSE)
7	USB-3.0 B MALE SOLDER
8	USB-3.0 B FEMALE RIGHT ANGLE
9	USB-3.0 MICRO B MALE SOLDER
10	USB-3.0 MICRO B FEMALE SMT
