MATERIAL & FINISHES INSULATOR: PBT UL 94-V0 RATED CONTACT: COPPER ALLOY SHELL: STEEL HOOD: STEEL CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED SHELL PLATING: NICKEL OVER COPPER PLATED 　 ELECTRICAL CHARACTERISTICS RATING CURRENT: 1 AMP CONTACT RESISTANCE: 25 MILLIOHM MAX. INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE OPERATING TEMPERATURE: -55 TO +105 MATING CYCLES: 3000 CYCLES MIN.

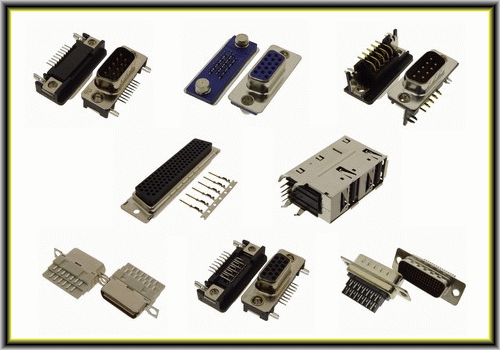

OTHER SPECIAL CONNECTORS 1 GDK DR9P 2 GDK DR9S 3 SLIM 9P MALE RIHGT ANGLE 4 SLIM HD15S RIGHT ANGLE 5 D-SUB 104P MALE CRIMP 6 USB-B MALE RIGHT ANGLE 7 SLIM HD15S VERTICAL 8 HIGH PROFILE DUAL USB SHELL
