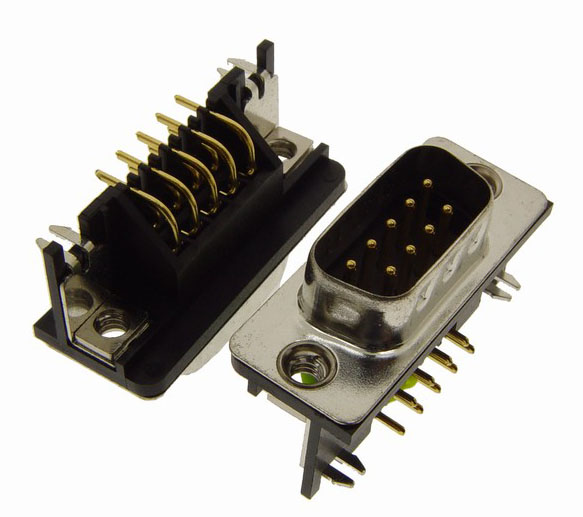

GDK DR9P |
MATERIALS:
 |
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.25mm |
 |
|
1.3-Shell:Spcc,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: ALL 15u" GOLD PLATED. |
¡@ |
|
SHELL: NICKEL, TIN, ZINC PLATED. |
| ¡@ |
|
|
|
 |

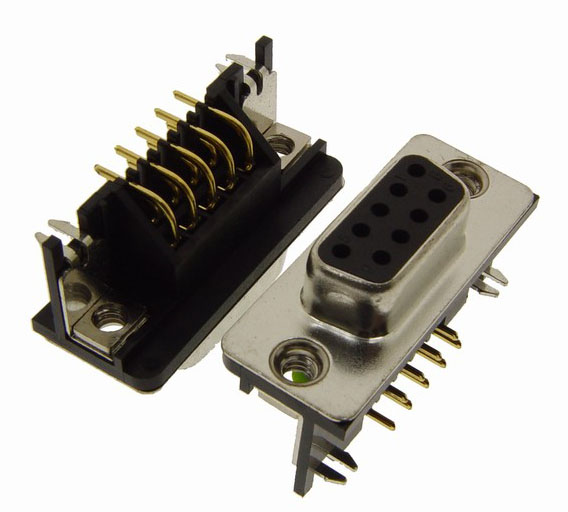

GDK DR9S |
MATERIALS:
|
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.25mm |
|
|
1.3-Shell:Spcc,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: GOLD FLASHED. |
¡@ |
|
SHELL: TIN PLATED. |
| ¡@ |
|
|
|
 |

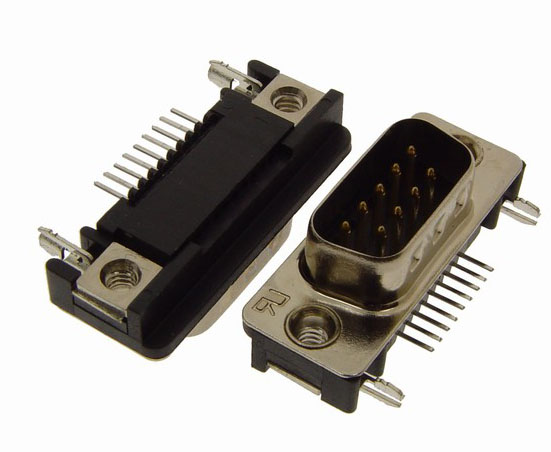

SLIM 9P MALE RIHGT ANGLE |
MATERIALS:
|
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.25mm |
|
|
1.3-Shell:Spcc,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: 15u" GOLD FLASHED. |
¡@ |
|
SHELL: NICKEL, TIN, ZINC PLATED. |
| ¡@ |
|
|
|
|

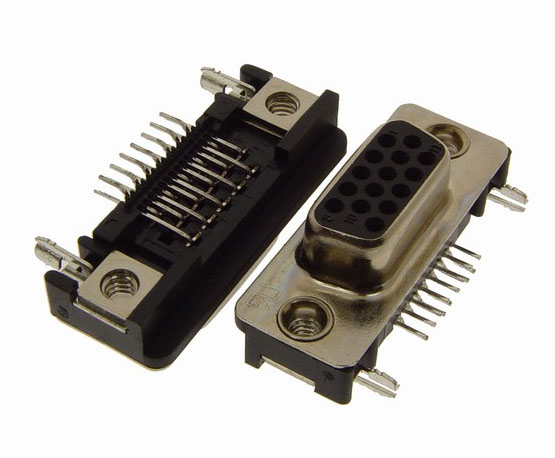

SLIM HD15S RIGHT ANGLE |
MATERIALS:
|
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.25mm |
|
1.3-Shell:Spcc,t=0.30mm |
|
|
1.4-Clip: Stainless
steel,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: 15u" GOLD FLASHED. |
¡@ |
|
SHELL: NICKEL, TIN, ZINC PLATED. |
| ¡@ |
|
|
|
 ¡@ |

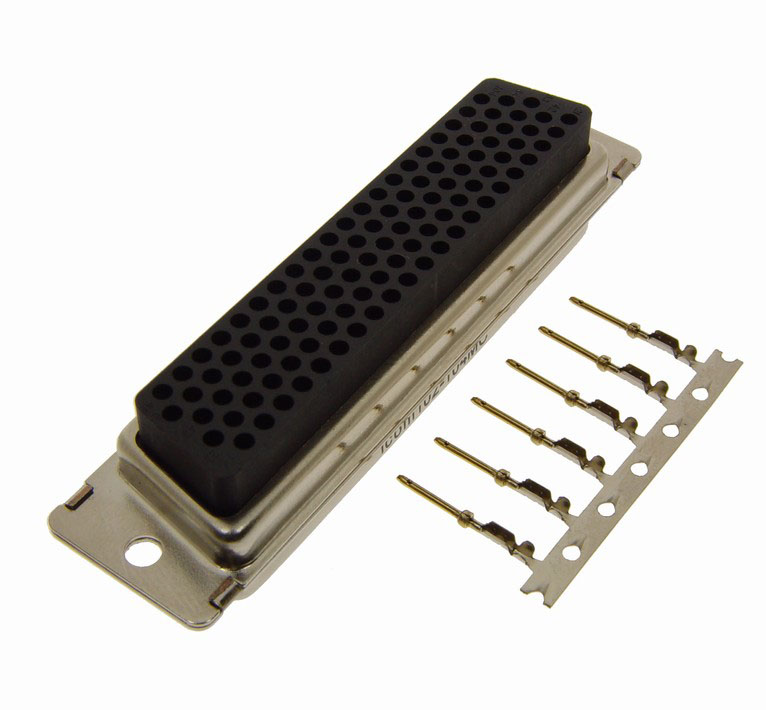

D-SUB 104P MALE CRIMP |
MATERIALS:
|
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.25mm |
|
1.3-Shell:Spcc,t=0.30mm |
|
|
1.4-Clip: Stainless
steel,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: 15u" GOLD FLASHED. |
¡@ |
|
SHELL: NICKEL, TIN, ZINC PLATED. |
| ¡@ |
|
|
|
¡@ |

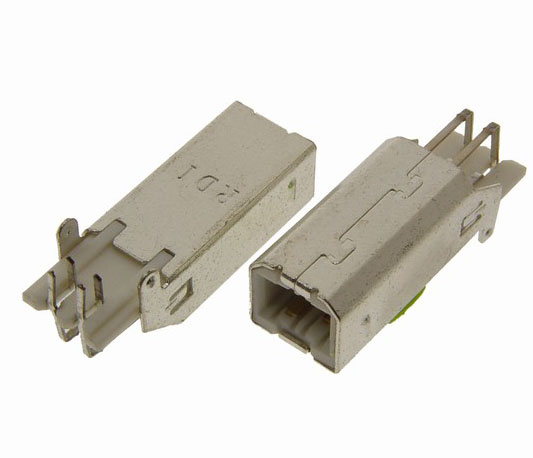

USB-B MALE RIGHT ANGLE |
MATERIALS:
|
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.25mm |
|
1.3-Shell:Spcc,t=0.30mm |
|
|
1.4-Clip: Stainless
steel,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: 15u" GOLD FLASHED. |
¡@ |
|
SHELL: NICKEL, TIN, ZINC PLATED. |
| ¡@ |
|
|
|
¡@ |

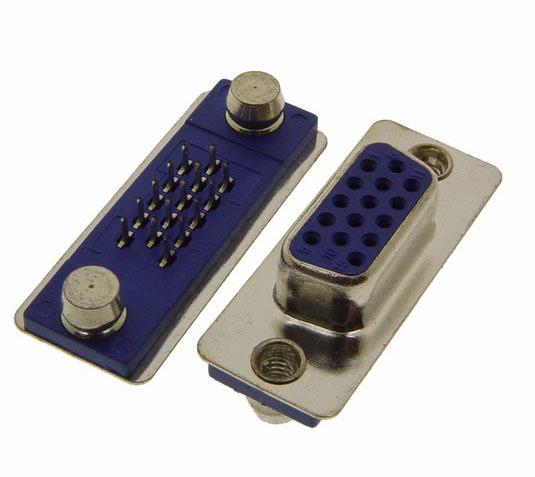

SLIM HD15S VERTICAL |
MATERIALS:
|
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.2mm |
|
|
1.3-Shell:Spcc,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: 15u" GOLD FLASHED. |
¡@ |
|
SHELL: NICKEL, TIN, ZINC PLATED. |
| ¡@ |
|
|
|
 ¡@ |

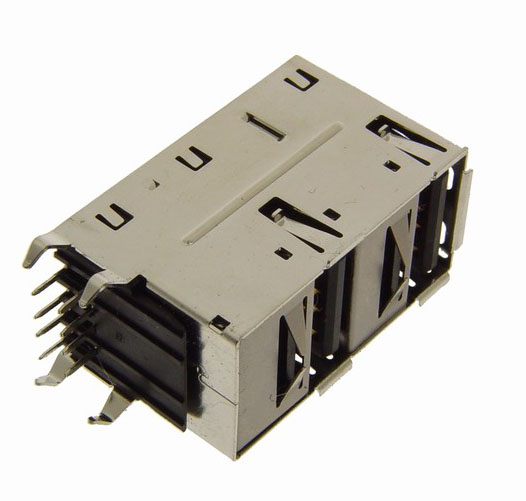

HIGH
PROFILE DUAL USB SHELL |
MATERIALS:
|
1.1-Insulator:High temperature |
¡@ |
| ¡@ |
¡@ |
thermoplastic with g.fUL94v-0 |
|
1.2-Contact:Copper
alloy,t=0.2mm |
|
|
1.3-Shell:Spcc,t=0.30mm |
¡@ |
FINISHES:
|
CONTACTS: 15u" GOLD FLASHED. |
¡@ |
|
SHELL: NICKEL, TIN, ZINC PLATED. |
| ¡@ |
|
|
|
¡@ |
