MATERIAL & FINISHES IINSULATOR: PBT UL 94-V0 RATED CONTACT: COPPER ALLOY SHELL: STEEL CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED SHELL PLATING: TIN, NICKEL OR ZINC PLATED 　 ELECTRICAL CHARACTERISTICS RATING CURRENT: 1 AMP CONTACT RESISTANCE: 25 MILLIOHM MAX. INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE OPERATING TEMPERATURE: -55 TO +105 MATING CYCLES: 3000 CYCLES MIN.

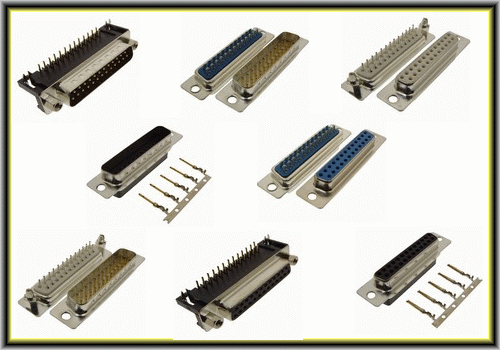

D-SUB CONNECTOR SERIES 1 D-SUB MALE SOLDER 2 D-SUB MALE CRIMP TYPE 3 D-SUB MALE STRAIGHT DIP 4 D-SUB MALE RIGHT ANGLE(8.10mm) 5 D-SUB MALE RIGHT ANGLE(10.30mm) 6 D-SUB MALE CLIP BOARD(1.6mm) 7 D-SUB FEMALE SOLDER 8 D-SUB FEMALE CRIMP TYPE 9 D-SUB FEMALE STRAIGHT DIP 10 D-SUB FEMALE RIGHT ANGLE(8.10mm) 11 D-SUB FEMALE RIGHT ANGLE(10.30mm) 12 D-SUB FEMALE CLIP BOARD(1.6mm)
