MATERIAL & FINISHES INSULATOR: PBT UL 94-V0 RATED CONTACT: COPPER ALLOY SHELL: COPPER ALLOY CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED SHELL PLATING: NICKEL OVER COPPER PLATED 　 ELECTRICAL CHARACTERISTICS RATING CURRENT: 1 AMP CONTACT RESISTANCE: 25 MILLIOHM MAX. INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE OPERATING TEMPERATURE: -55 TO +105 MATING CYCLES: 1500 CYCLES MIN.

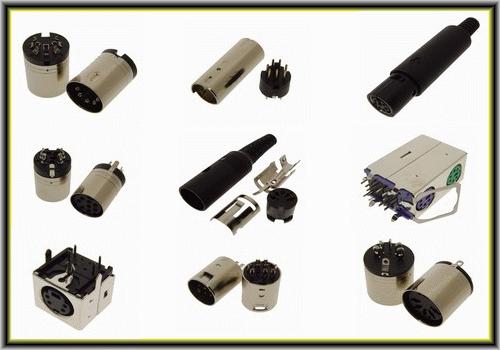

DIN CONNECTOR SERIES 1 DIN MALE MOLDED 2 DIN MALE ASSEMBLY 3 DIN FEMALE MOLDED 4 DIN FEMALE ASSEMBLY 5 MINI DIN MALE MOLDED(LONG BODY) 6 MINI DIN MOLDED (SHORT BODY)) 7 MINI DIN 9M MOLDED (LONG BODY) 8 MINI DIN 9M MOLDED (SHORT BODY) 9 MINI DIN MALE ASSEMBLY 10 MINI DIN FEMALE MOLDED 11 MINI DIN FEMALE MOLDED(WG) 12 MINI DIN 9F MOLDED 13 MINI DIN FEMALE ASSEMBLY 14 MINI DIN FEMALE R/A TYPE1 15 MINI DIN FEMALE R/A TYPE2 16 MINI DIN FEMALE R/A DOUBLE PORTS
