MATERIAL & FINISHES INSULATOR: PBT UL 94-V0 RATED CONTACT: COPPER ALLOY SHELL: STEEL HOOD: STEEL CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED SHELL PLATING: NICKEL OVER COPPER PLATED 　 ELECTRICAL CHARACTERISTICS RATING CURRENT: 1 AMP CONTACT RESISTANCE: 25 MILLIOHM MAX. INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE OPERATING TEMPERATURE: -55 TO +105 MATING CYCLES: 3000 CYCLES MIN.

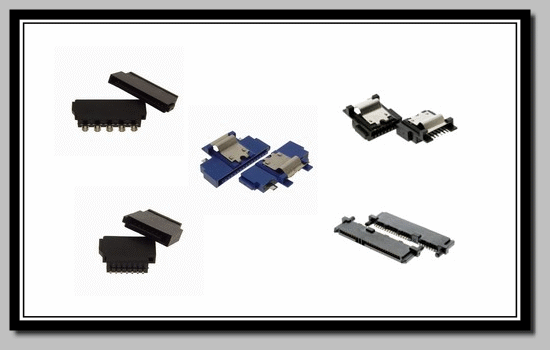

OTHER SPECIAL CONNECTORS 1 SERIAL ATA 15PIN(F) SOLDER 2 SERIAL ATA 7PIN(F) SOLDER 3 SERIAL ATA 15PIN(F) SOLDER WSS 4 SERIAL ATA 7PIN(F) SOLDER WSS 5 SERIAL ATA 15PIN(F) SOLDER WPS 6 SERIAL ATA 15+7(F) SOLDER
