MATERIAL & FINISHES
INSULATOR: PBT UL 94-V0 RATED
CONTACT: COPPER ALLOY
SHELL: STEEL, COPPER ALLOY
CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED
SHELL PLATING: TIN OR NICKEL OVER COPPER PLATED
¡@
ELECTRICAL CHARACTERISTICS
RATING CURRENT: 1 AMP
CONTACT RESISTANCE: 25 MILLIOHM MAX.
INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V
DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE
OPERATING TEMPERATURE: -55 TO +105
MATING CYCLES: 3000 CYCLES MIN.

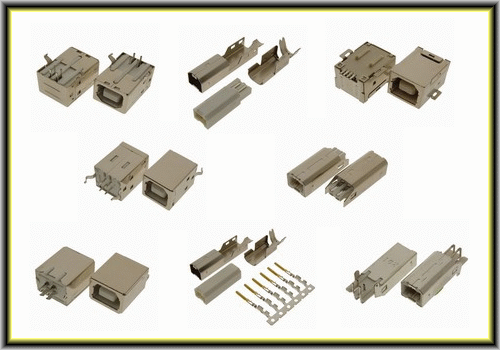

U.S.B. B TYPE CONNECTOR
1 USB-B MALE SOLDER  LONG SHELL
2 USB-B MALE SOLDER  SHORT SHELL
3 USB-B MALE CRIMP
4 USB-B MALE RIGHT ANGLE
5 USB-B FEMALE SOLDER
6 USB-B FEMALE RIGHT ANGLE
7 USB-B FEMALE VERTICAL
8 USB-B FEMALE S.M.T
¡@
¡@
¡@
¡@
¡@
