MATERIAL & FINISHES INSULATOR: PBT UL 94-V0 RATED CONTACT: COPPER ALLOY SHELL: STEEL HOOD: STEEL CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED SHELL PLATING: NICKEL OVER COPPER PLATED 　 ELECTRICAL CHARACTERISTICS RATING CURRENT: 1 AMP CONTACT RESISTANCE: 25 MILLIOHM MAX. INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE OPERATING TEMPERATURE: -55 TO +105 MATING CYCLES: 3000 CYCLES MIN.

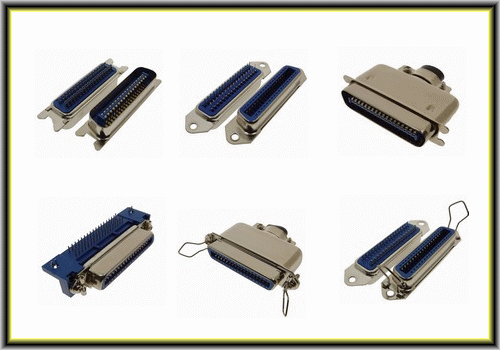

CENTRONIC CONNECTOR SERIES 1 CENTRONIC MALE MOLDED(T) 2 CENTRONIC MALE MOLDED(N) 3 CENTRONIC MALE ASSEMBLY 4 CENTRONIC MALE VERTICAL 5 CENTRONIC FEMALE MOLDED 6 CENTRONIC FEMALE ASSEMBLY 7 CENTRONIC FEMALE VERTICAL 8 CENTRONIC FEMALE RIGHT ANGLE(36) 9 CENTRONIC FEMALE RIGHT ANGLE(50)
