MATERIAL & FINISHES IINSULATOR: PBT UL 94-V0 RATED CONTACT: COPPER ALLOY SHELL: STEEL CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED SHELL PLATING: TIN, NICKEL OR ZINC PLATED 　 ELECTRICAL CHARACTERISTICS RATING CURRENT: 1 AMP CONTACT RESISTANCE: 25 MILLIOHM MAX. INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE OPERATING TEMPERATURE: -55 TO +105 MATING CYCLES: 3000 CYCLES MIN.

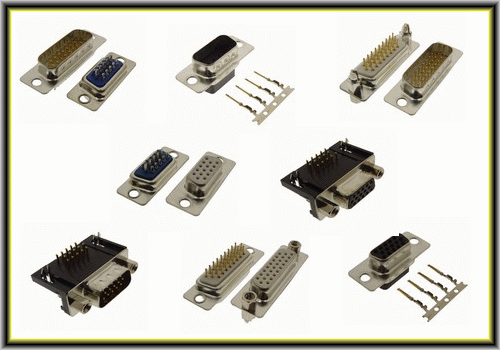

D-SUB CONNECTOR SERIES 1 H.D.D-SUB MALE SOLDER 2 H.D.D-SUB MALE CRIMP TYPE 3 H.D.D-SUB STRAIGHT DIP 4 H.D.D-SUB MALE RIGHT ANGLE 5 H.D.D-SUB FEMALE SOLDER 6 H.D.D-SUB FEMALE CRIMP TYPE 7 H.D.D-SUB FEMALE STRAIGHT DIP 8 H.D.D-SUB FEMALE RIGHT ANGLE 9 COMBINATION D-SUB MALE SOLDER 10 COMBINATION D-SUB FEMALE SOLDER
