HSI-CHIN ELECTRONICS .,CO LTD.

MATERIAL & FINISHES

	INSULATOR: PBT UL 94-V0 RATED
	CONTACT: COPPER ALLOY
	SHELL: STEEL, COPPER ALLOY
	CONTACT PLATING: SELECTIVE GOLD OVER NICKEL PLATED
	SHELL PLATING: TIN OR NICKEL OVER COPPER PLATED

ELECTRICAL CHARACTERISTICS

	RATING CURRENT: 1 AMP
	CONTACT RESISTANCE: 25 MILLIOHM MAX.
	INSULATION RESISTANCE: 1000 MEGOHM MIN. AT 500V
	DIELECTRIC VOLTAGE: 1000V AT 1 MINUTE
	OPERATING TEMPERATURE: -55 TO +105
	MATING CYCLES: 3000 CYCLES MIN.

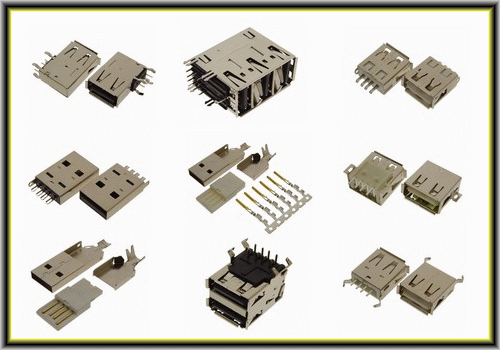

U.S.B. A CONNECTOR SERIES
	USB-A MALE SOLDER LONG SHELL
	USB-A MALE SOLDER SHORT SHELL
	USB-A MALE CPIMP
	USB-A MALE RIGHT ANGLE
	USB-A MALE SMT TYPE1
	USB-A MALE SMT TYPE2
	USB-A FEMALE SOLDER
	USB-A FEMALE SOLDER WITH HOOD
	USB-A FEMALE RIGHT ANGLE TYPE1
	USB-A FEMALE UPRIGHT
	USB-A FEMALE VERTICAL(15.0mm)
	USB-A FEMALE VERTICAL(10.0mm)
	USB-A FEMALE SMT TYPE1
	USB-A FEMALE SMT TYPE2
	USB-A FEMALE RIGHT ANGLE TYPE2
	USB-A FEMALE SMT TYPE3
	USB-A FEMALE SOLDER (DOUBLE PORTS)
	USB-A FEMALE RIGHT ANGLE (DOUBLE PORTS)
	USB-A FEMALE VERTICAL (DOUBLE PORTS)
	USB-A FEMALE RIGHT ANGLE (TRIPLE PORTS)
